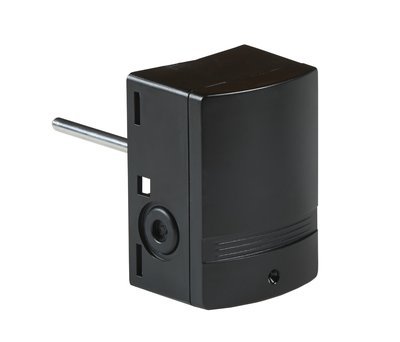

High quality duct mounted relative humidity transmitter in the Safe Box, NEMA 4X / IP 65, injection-molded plastic enclosure. Coated circuit boards are treated to resist moisture. On-board DIP switches enable user to change output signal in the field. Accurate measurement with long term stability. Dual filters to resist contamination and ensure reliability.
Humidity sensors are also available with passive thermistors or RTDs.
The hinged poly-carbonate cover and quick connect wire terminals terminals make for fast tool-free wiring and reduce installation costs.
FEATURES
Humidity or temperature/humidity option
Durable NEMA 4X injection-molded watertight enclosure
Quick Connect wire terminals
NTC thermistors, RTD elements and transmitters available
Dual filters to protect from contamination
2% / 3% /5% RH accuracies
Onboard DIP switches for selecting output in the field (0-5V, 0-10V & 4-20mA)
Coated circuit boards for moisture resistance
Adjustable length
Installed anti-vibration pad on flange
Compatible with most control systems
1/2” NPT threaded port on bottom with additional punch-outs
